名称：MD50C
详细信息

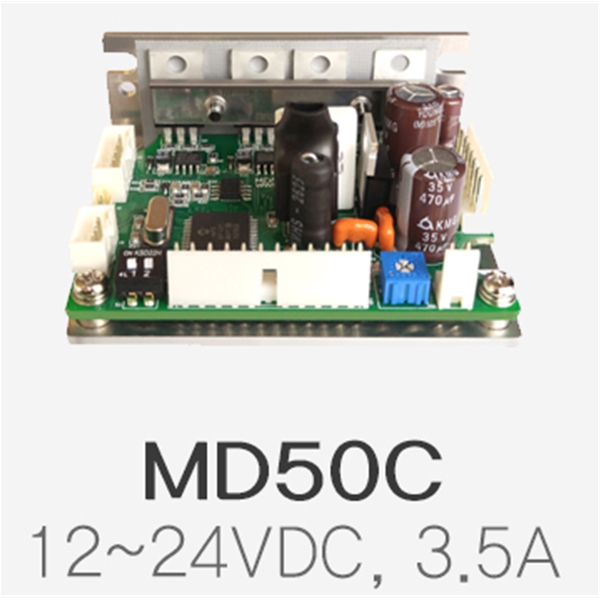

MD50C
市 场 价：￥0
优 惠 价：￥1
库 存：999
MD50C：
MD50C
商品详细
- ■ Features
-Brushless motor, 4-Q(Quadrant) PWM servo controller(with encoder)
-RS485 serial commucation, 0~5V Analog or PWM input
-Programmable current limit for protecting controller or limit system load.
-Accurate speed and odometry measurement using hall-sensor data
-Up to 7 digital speed inputs by setting I/O channels as speed step inputs.
-Quadrature encoder inputs(servo control)
-Open loop or closed loop speed control with serial communication(RS485)
-Closed loop position control with communication
-Short circuit, overvoltage and undervoltage, stall protection, diagnostic LED
- -30°C to +65°C operating environment
-Easy configuration, tune and monitory using provided PC utility(MDAS program)

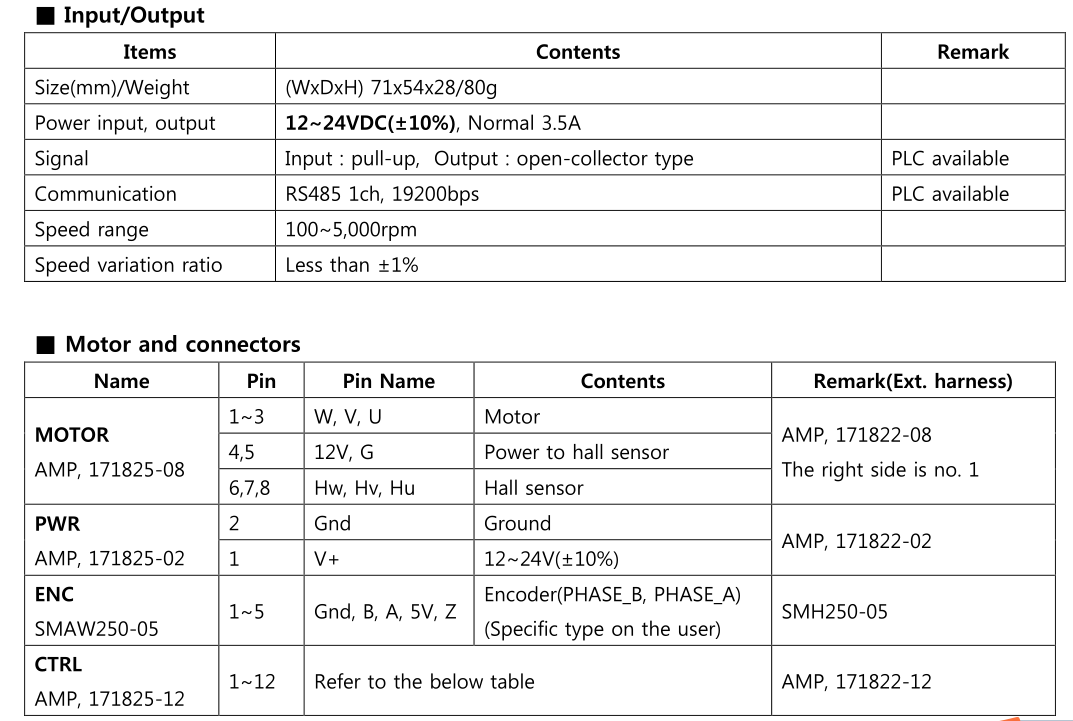

■ Specification
